My primary SOTA rig is the Steve Weber (KD1JV) ATS4b. (185g)
This is a 5 band CW rig covering 40 - 15 metres at approx 4 to 5 Watts O/P.
Power is supplied by a 1000mAH Lipo 3 cell battery (89g) or 350mAh 3sS Lipo (47g)
The antenna is an EFHW for the band in operation (linked wire) tuned using a KD1JV L Tuner. (85g)
This is raised on a 7 metre fishing pole.
Keyer is an American Morse Equipment Porta Paddle. (70g)
As back up I also have 2 KD1JV Mountain Top Radios (MTR)
MTR 1 covers 60 and 20 metres. (80g)
MTR 2 covers 30 and 40 metres. (169g)
Backup key is provided by a Palm Pico keyer. (28g)
Logging is done either manually, with Notepad and pencil, or via a Pandora Handheld computer using SOTALog.
 |

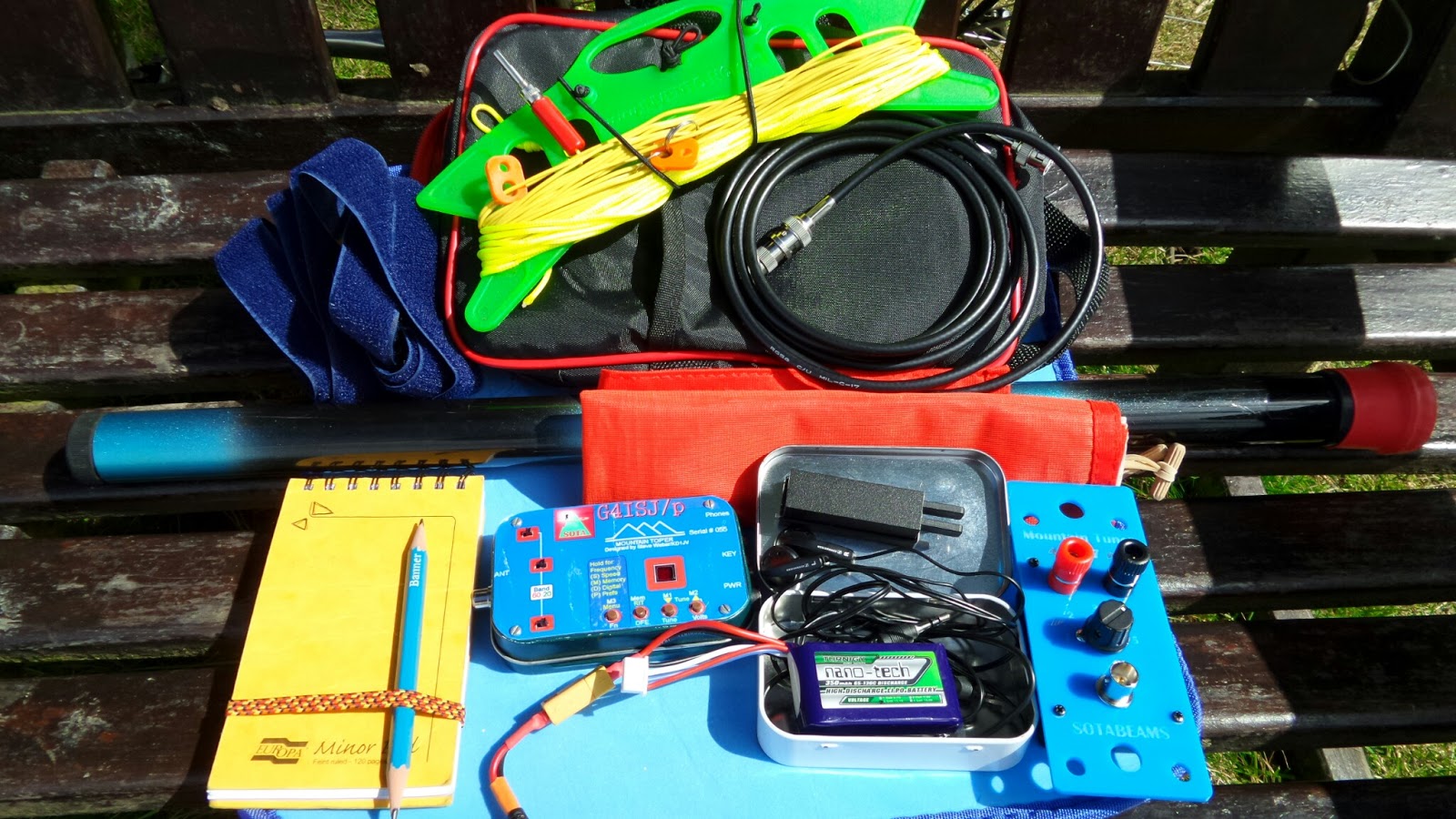

| ATS4b, Lipo Battery, L-Tuner, AME Porta paddle |
 |
| A small handful. |
 |
| A Tiny Handful. |
 |

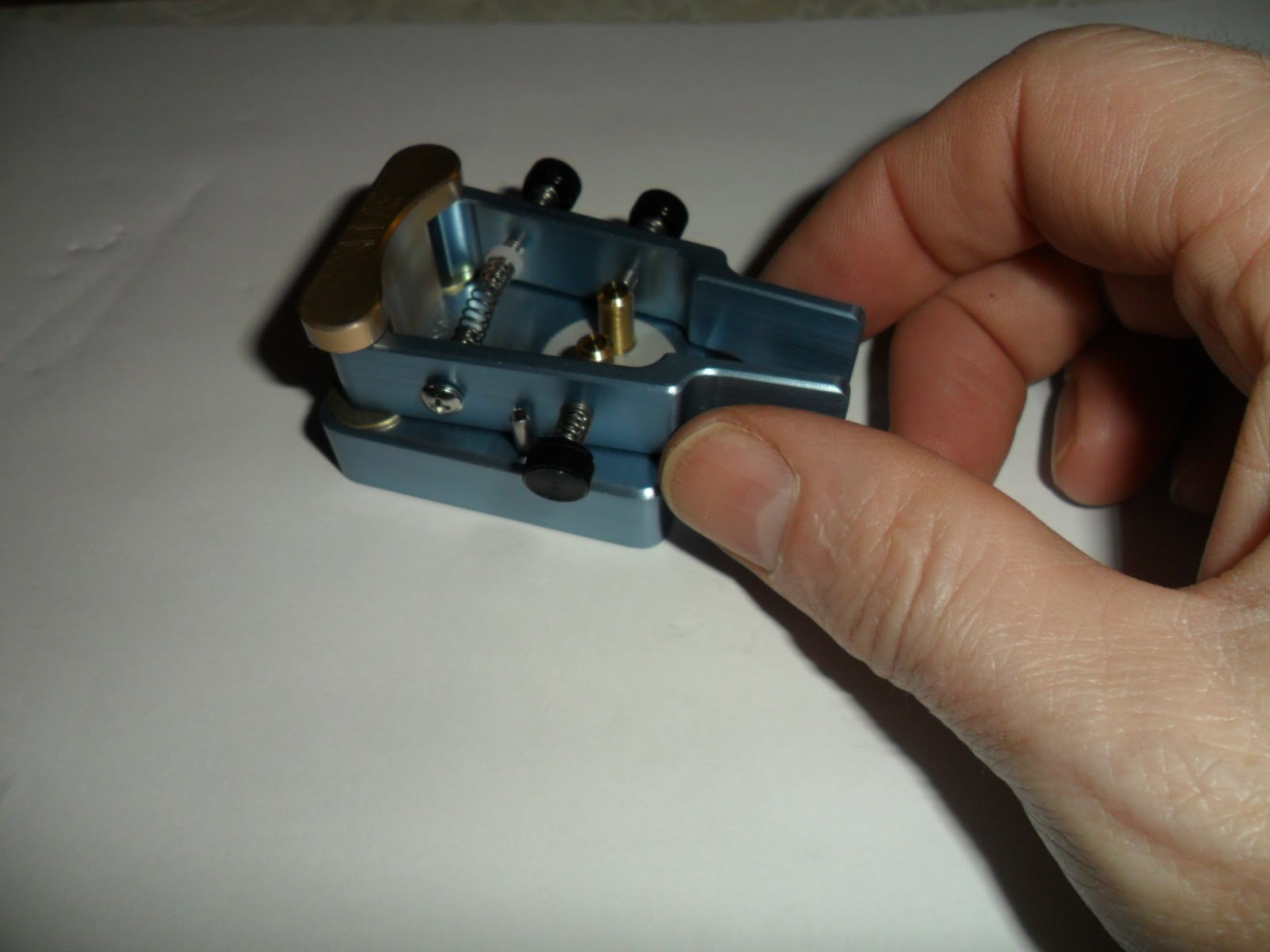

| AME Porta Paddle |
 |

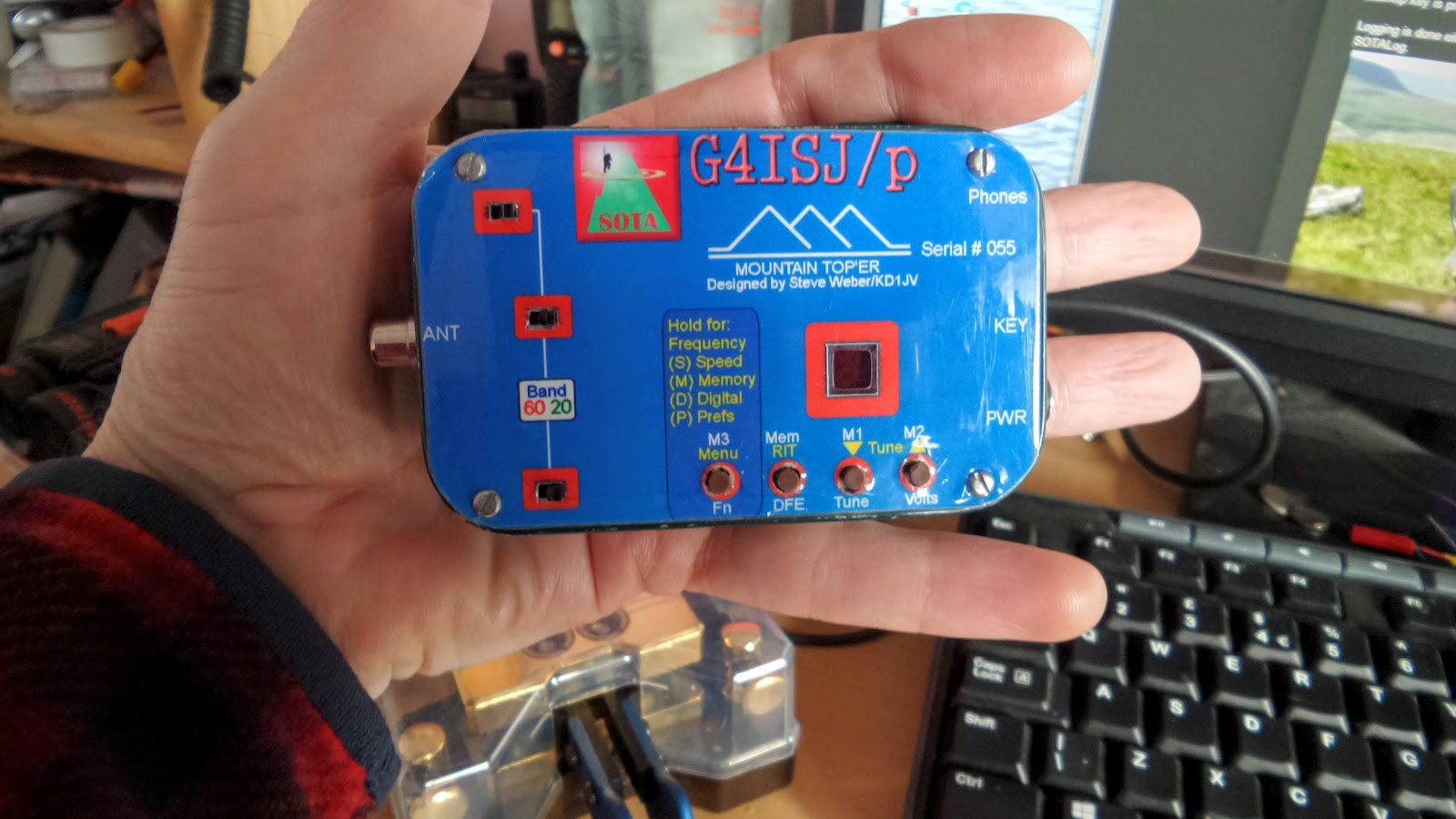

| MTR Ver1 (60/20) |
 |

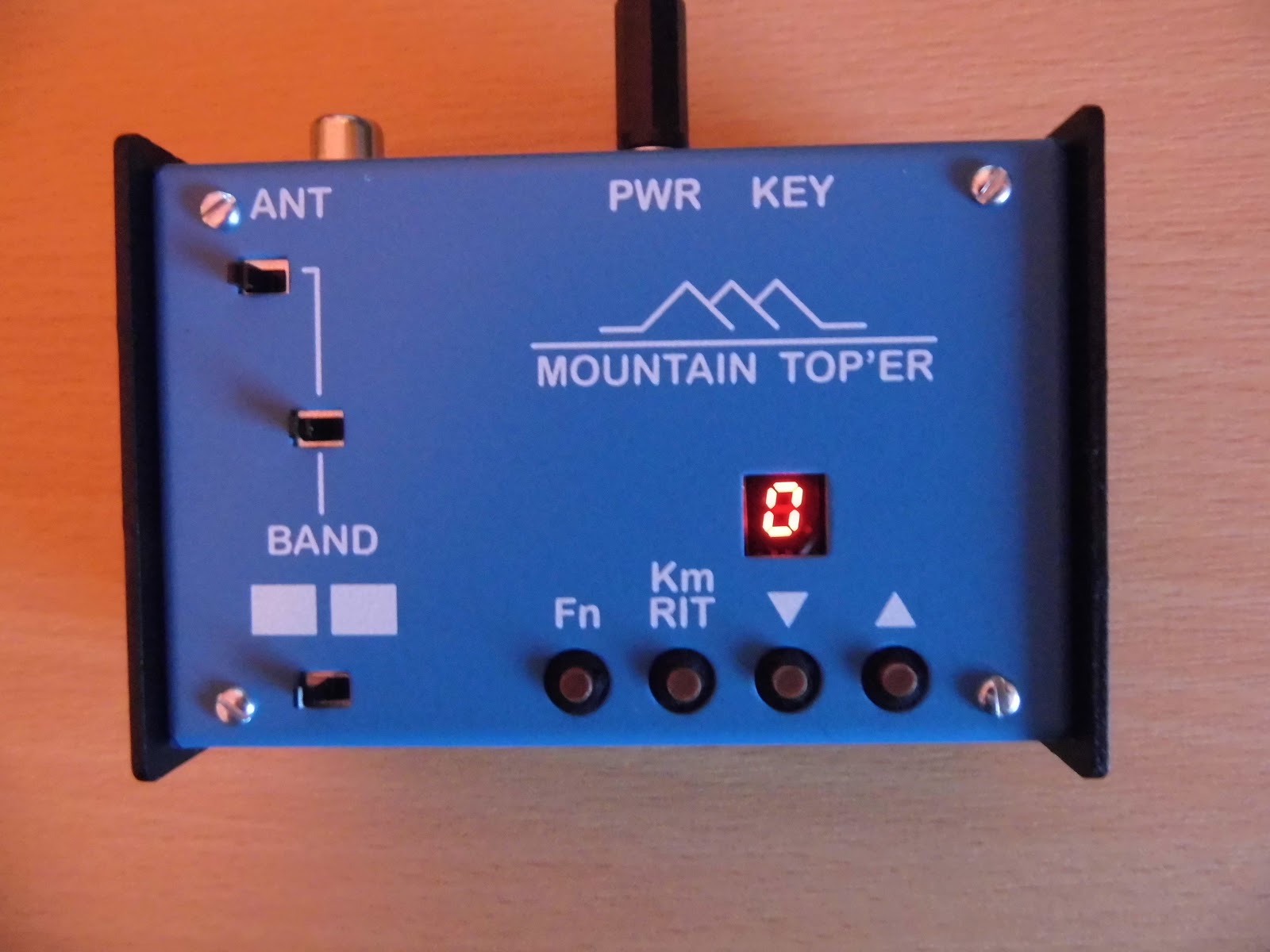

| MTR Ver2 (30/40) |
 |
| KD1JV rigs |
 |

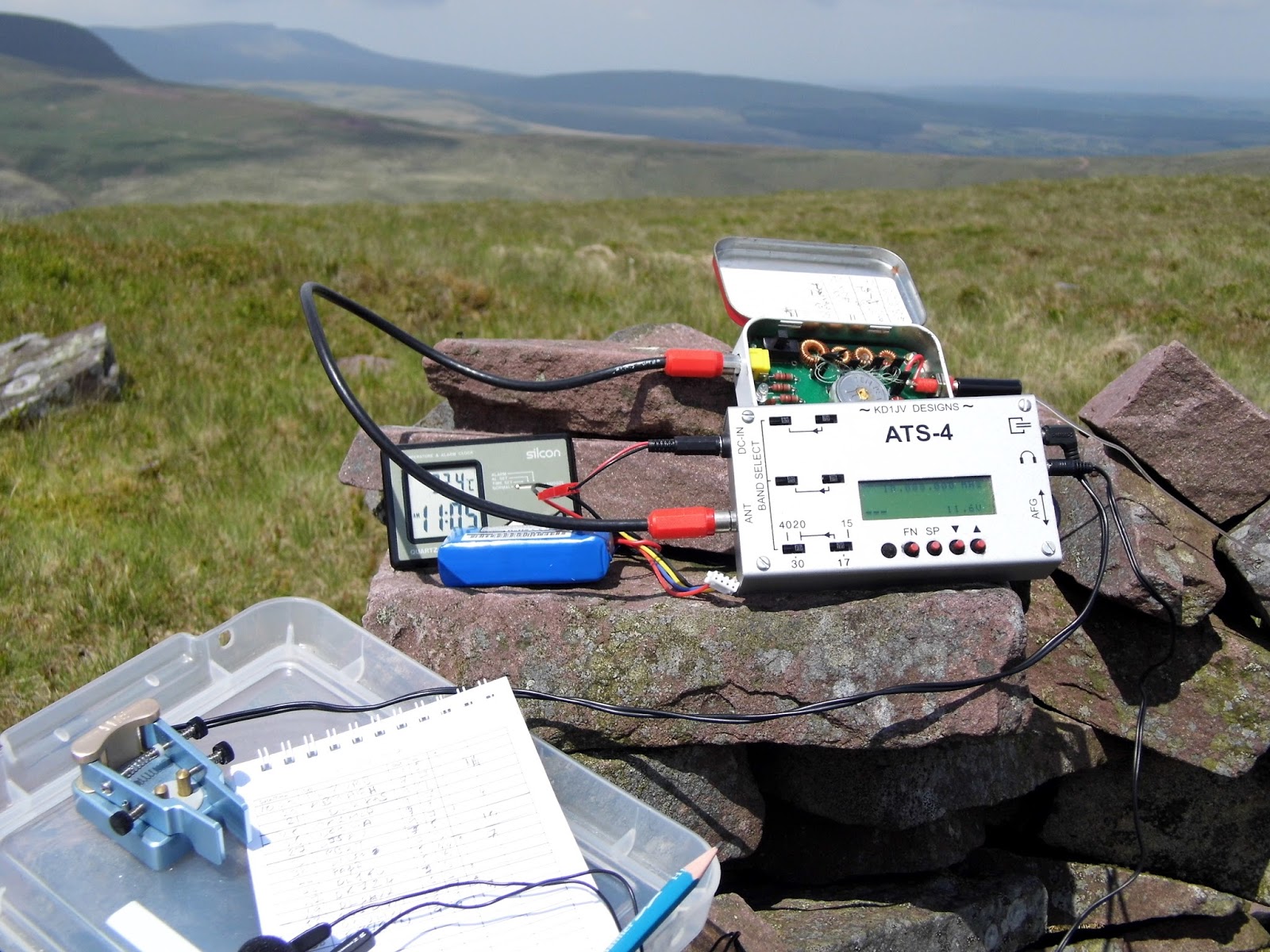

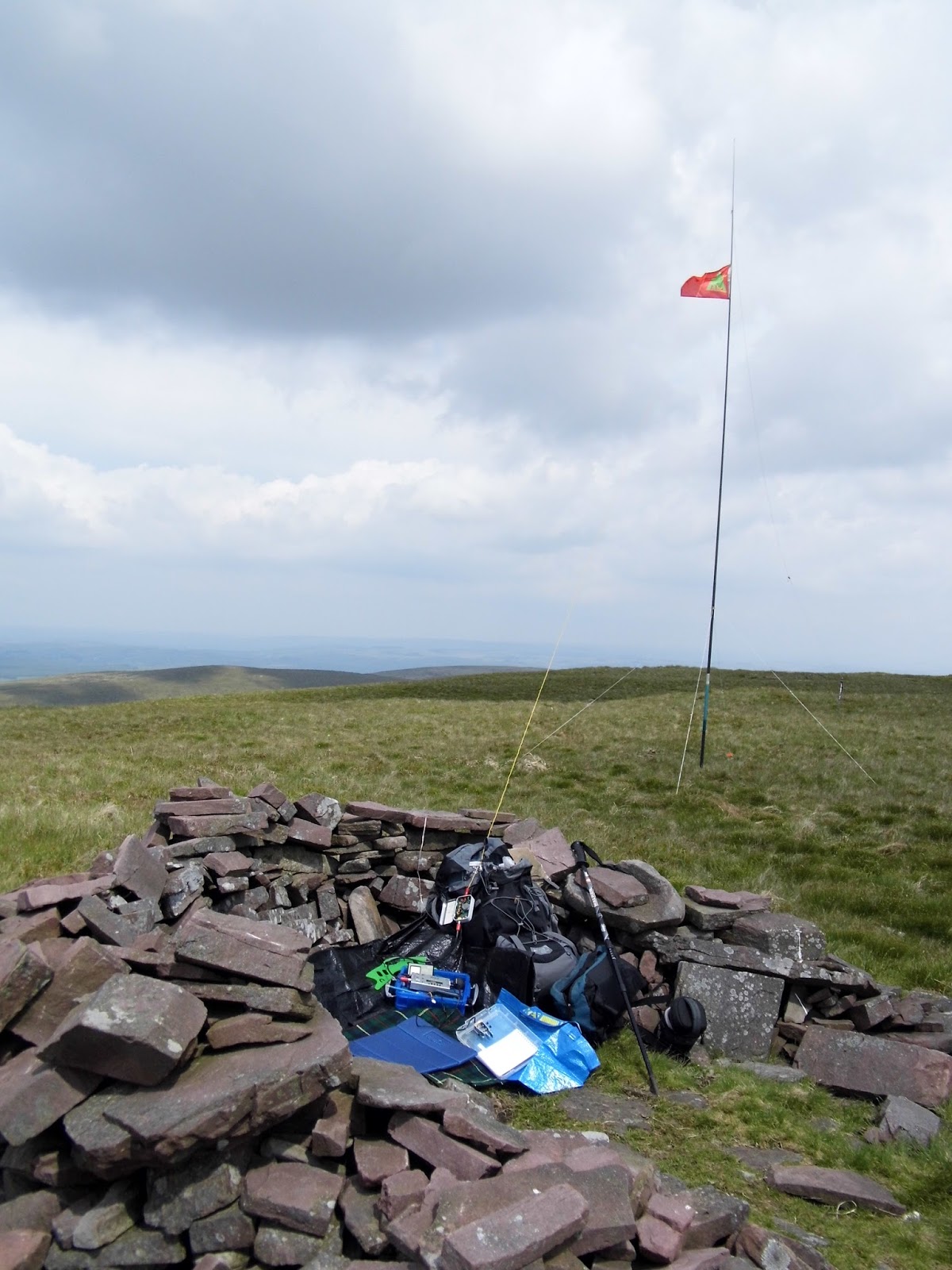

| In the field |
 |
| Back-up, Palm Pico key. |
 |
| QRPp funday's setup! Rockmite 20 and UglyMite 40. 500mW O/P |
 |
| Bicycle Rig |
 |
| Bicycle rig packed |
 |
| Logging with a Pandora |
 |
| Pandora in action |
 |

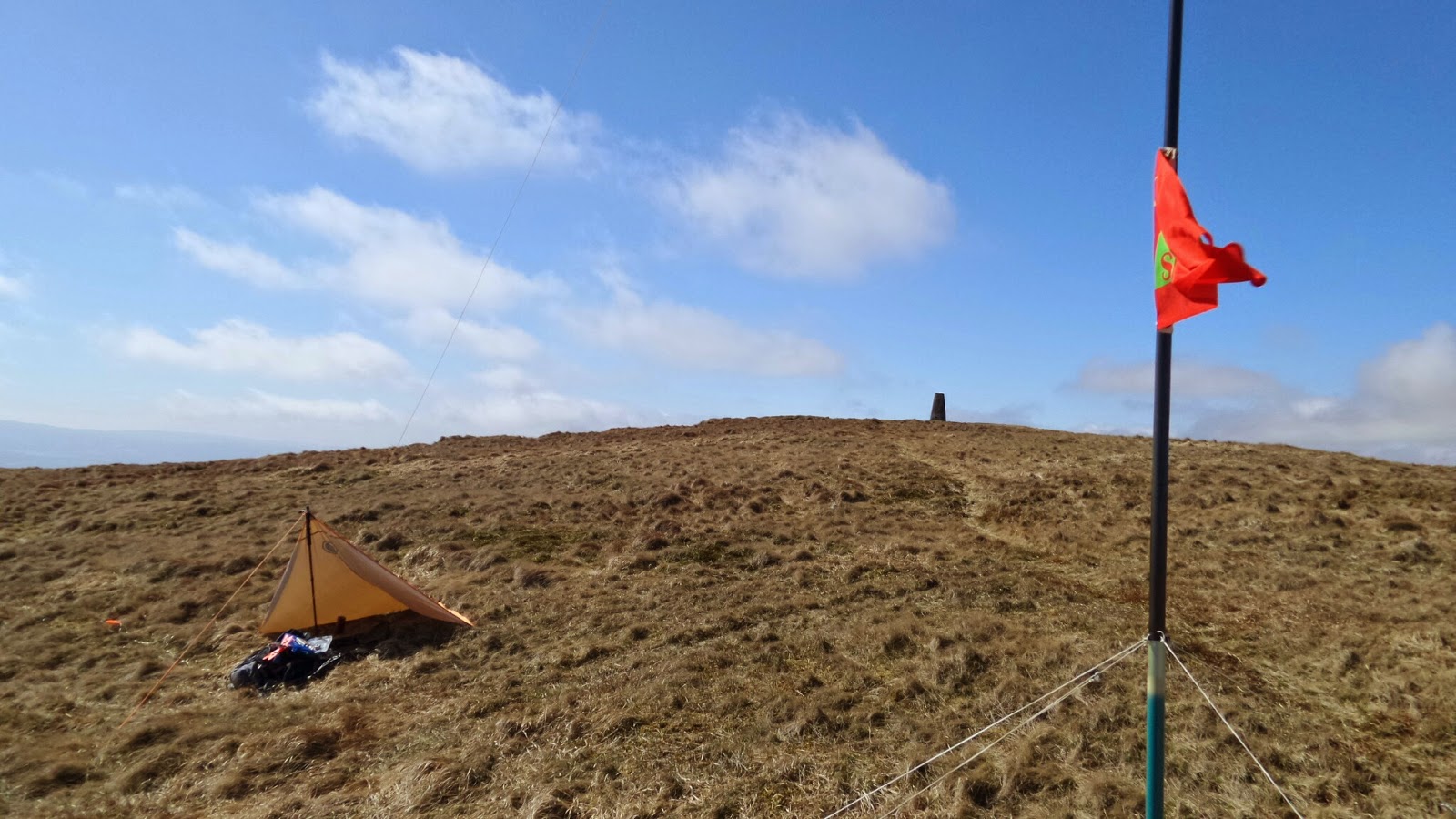

| On the mountain (summit shelter) |
 |
| Bicycle Portable |
